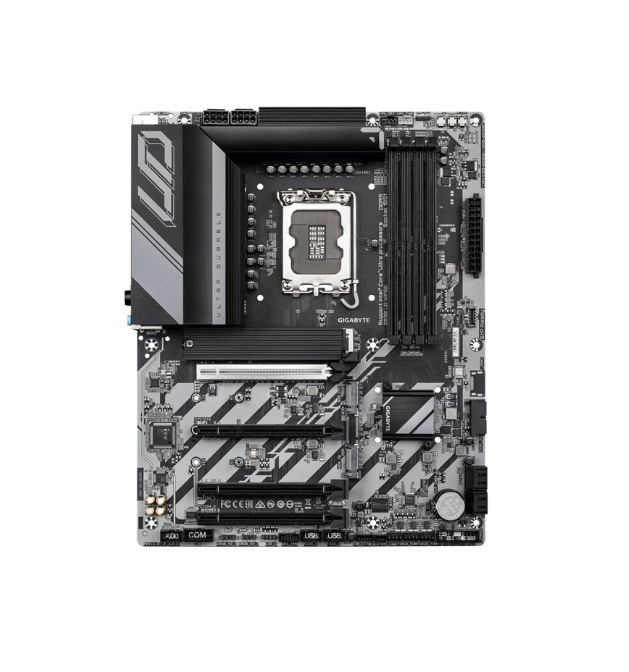

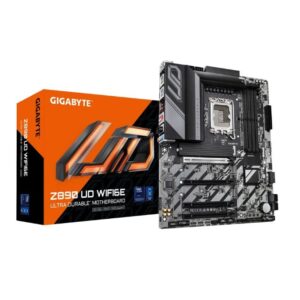

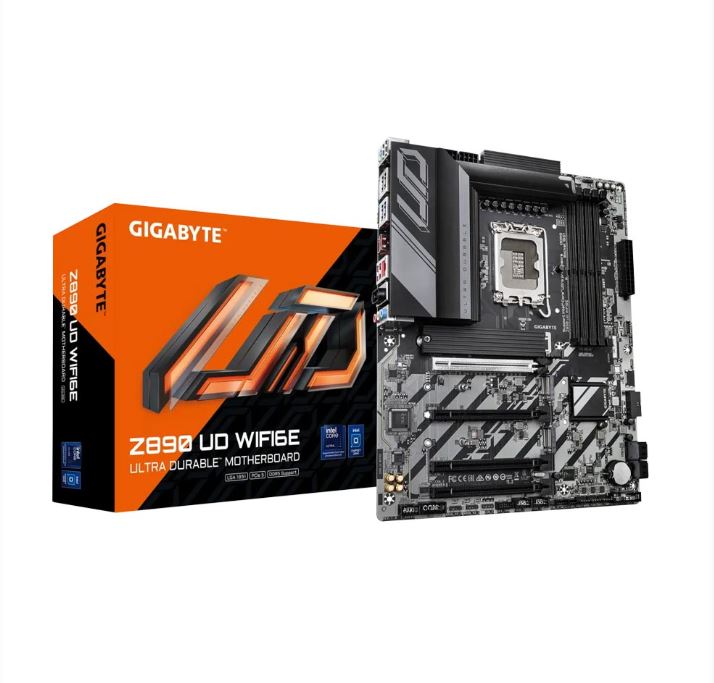

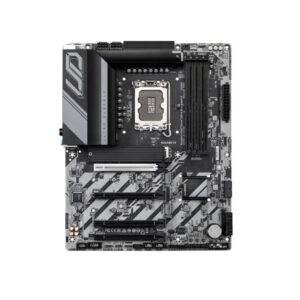

Bo mạch chủ Main Gigabyte Z890 UD WIFI6E Socket LGA 1851 – Hàng chính hãng

Thương hiệu: Gigabyte

Dòng sản phẩm: Z890 UD WIFI6E

Socket: LGA1851 socket – Support for Intel® Core™ Ultra Processor

Kích thước: ATXKhe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot (supporting PCIe 5.0 and running at x16 (PCIEX16)), 2 x PCI Express x16 slots (supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)), 1 x PCI Express x16 slot (supporting PCIe 4.0 and running at x1 (PCIEX1))

Key Features:

Supports Intel® Core™ Ultra processors (Series 2)

Digital twin 12+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AI Perfdrive : Provides optimal and customized BIOS preset profile for users

Premium Compatibility : 4*DDR5 with XMP Memory Module Support

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

EZ-Latch : PCIe x16 Slot with Quick Release Design

Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in  HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard

Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort

RAM hỗ trợ:

Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module

Cổng kết nối (Internal):

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

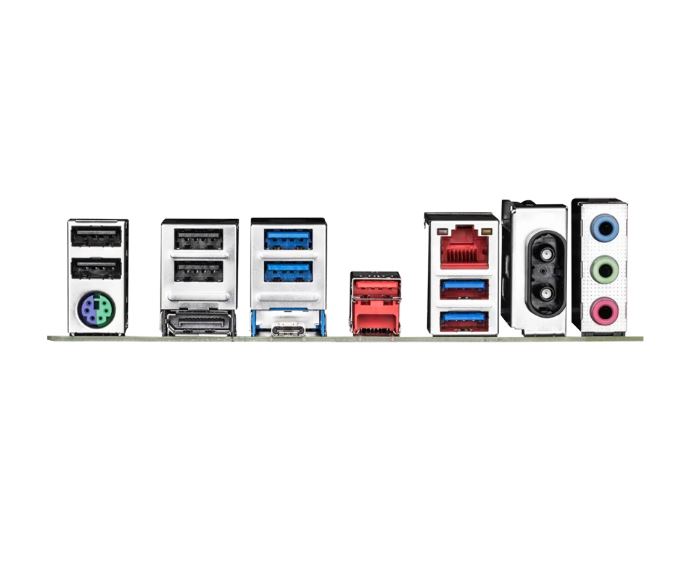

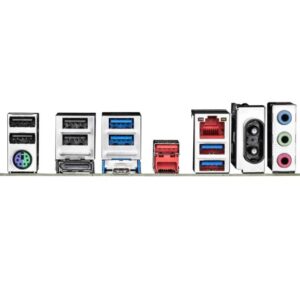

Cổng kết nối (Back Panel):

4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks

LAN / Wireless:

LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless:

Intel Wi-Fi 6E AX211 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3

Kích cỡ:

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
