Bo mạch chủ Main Gigabyte Z890 GAMING X WIFI7 Socket LGA 1851 – Hàng chính hãng

Thương hiệu: Gigabyte

Dòng sản phẩm: Z890 GAMING X WIFI7

Socket: LGA1851 socket – Support for Intel Core Ultra Processor

Kích thước: ATXKhe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot (supporting PCIe 5.0 and running at x16 (PCIEX16)), 2 x PCI Express x16 slots (supporting PCIe 4.0 and running at x4 (PCIEX4_1/2))Khe cắm ổ cứng: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Khe cắm ổ cứng: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Key Features:

Supports Intel® Core™ Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AI Perfdrive : Provides optimal and customized BIOS preset profile for users

Premium Compatibility : 4*DDR5 with XMP Memory Module Support

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click : M.2 heatsinks with screwless design

Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup

Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in  HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4

Efficient Thermal : VRM Thermal Armor Advanced   & M.2 Thermal Guard

Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort

PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Cổng kết nối (Internal):

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

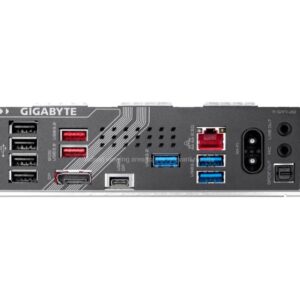

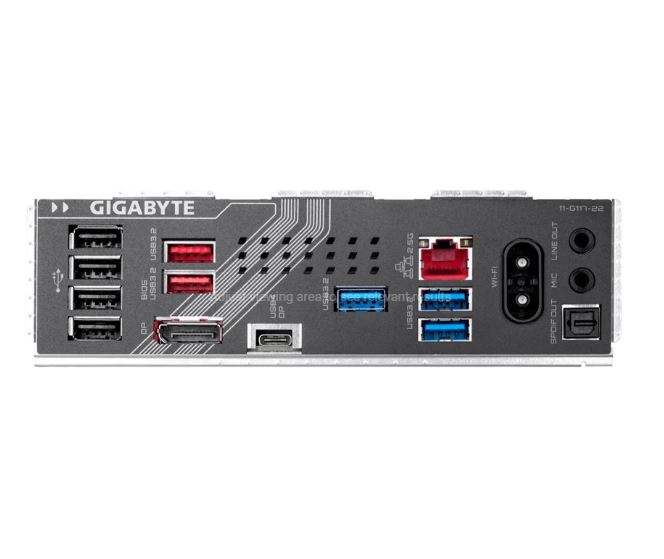

Cổng kết nối (Back Panel):

1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

RAM hỗ trợ:

Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module

LAN / Wireless:

LAN:

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless:

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4

Kích cỡ:

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
