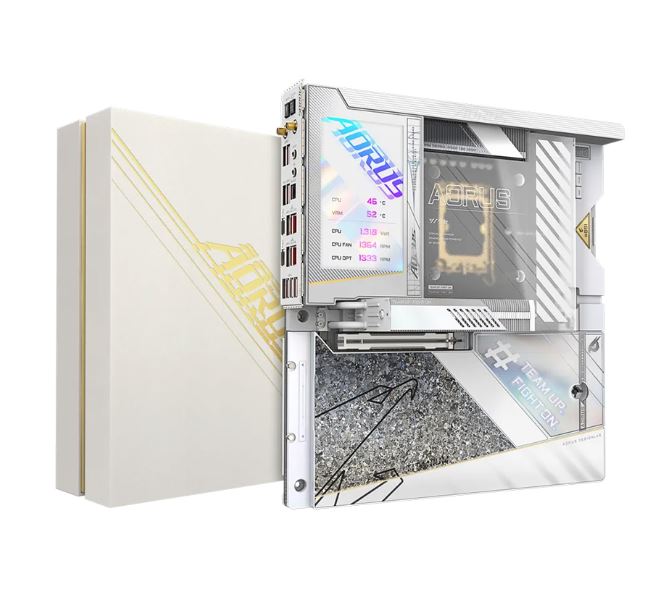

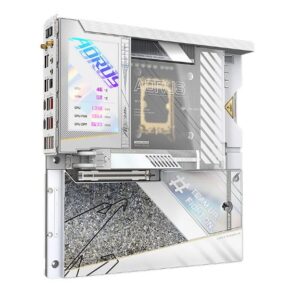

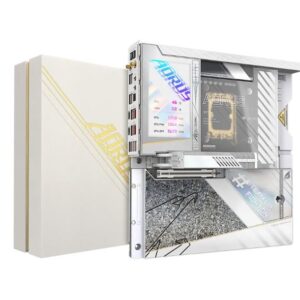

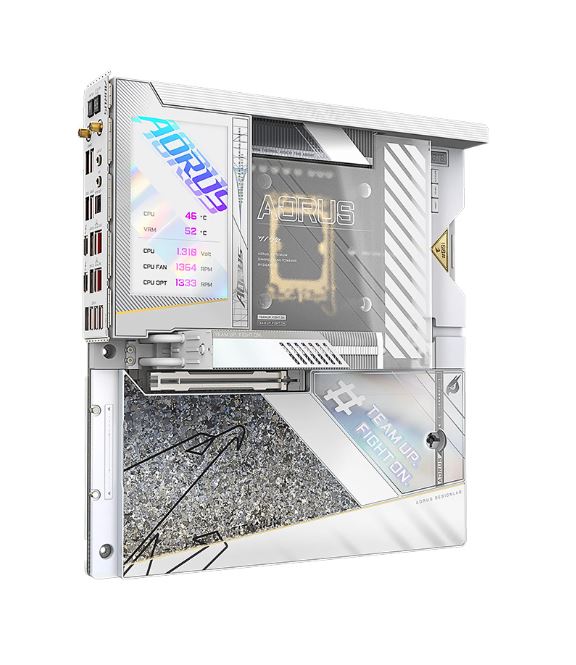

Bo mạch chủ Main Gigabyte Z790 AORUS XTREME X ICE Socket LGA1700 – Hàng chính hãng

Thương hiệu: Gigabyte

Dòng sản phẩm: Z790 AORUS XTREME X ICE

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước:E-ATXKhe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)Khe cắm ổ cứng: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 2 x M.2 connectors, 1 x M.2 connector, 4 x SATA 6Gb/s connectors

Key Features:

Supports Intel® Core™ 14th and 13th processors

Digital twin 24+1+2 phases VRM solution

Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support

PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

EZ-Latch Click：M.2 heatsinks with screwless design

EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design

UC BIOS：User-Centred intuitive UX with Quick Access function

Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4

Efficient Overall Thermal：VRM Thermal Armor Fins-Array & M.2 Thermal Guard XTREME

Fast Networking：10GbE + 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

Extended Connectivity：Dual Thunderbolt 4™, Dual Front USB-C® 20Gb/s

DTS:X® Ultra Audio：ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled

Cổng kết nối (Internal):

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan extension cable header (can extend three system fan headers through one cable)

1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)

1 x noise detection header

1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable)

4 x SATA 6Gb/s connectors

5 x M.2 Socket 3 connectors

1 x front panel header

2 x USB Type-C® headers, with USB 3.2 Gen 2×2 support

2 x USB 3.2 Gen 1 headers

1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)

2 x temperature sensor headers

1 x power button

1 x reset button

1 x Clear CMOS button

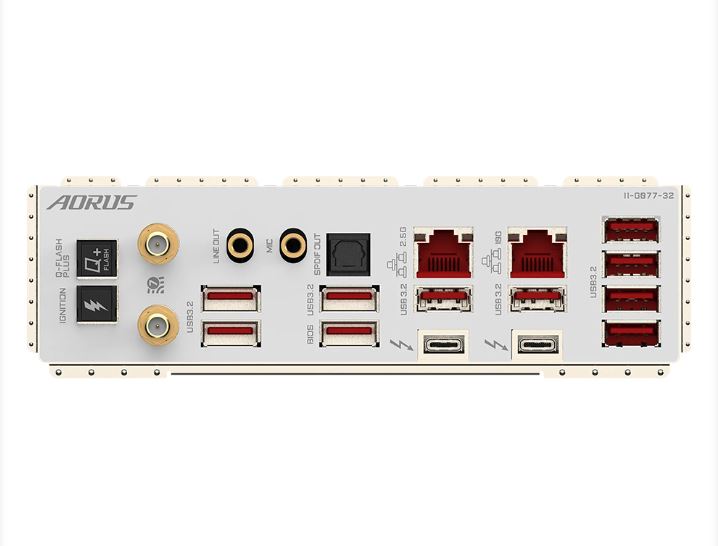

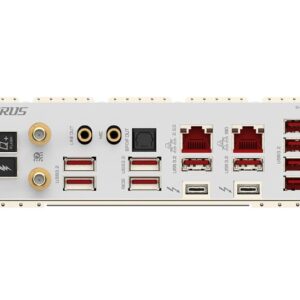

Cổng kết nối (Back Panel):

1 x Q-Flash Plus button

1 x OC Ignition button

2 x SMA antenna connectors (2T2R)

2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)

10 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 ports

1 x optical S/PDIF Out connector

2 x audio jacks * The mic in jack supports only mono microphone input

RAM hỗ trợ:

1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

LAN / Wireless:

1. ® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
2. ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
3. ® Wi-Fi 7 BE200
   1. 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.3
   3. Support for 11be 320MHz wireless standard

Kích cỡ:  E-ATX Form Factor; 30.5cm x 28.5cm
