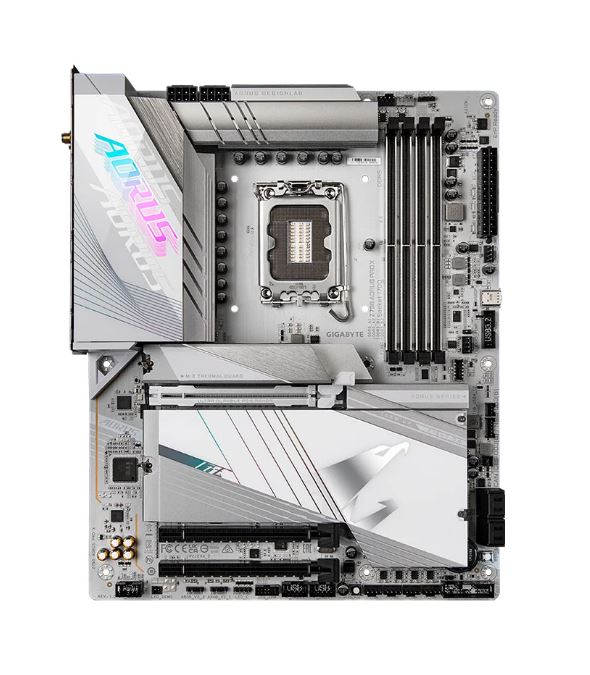

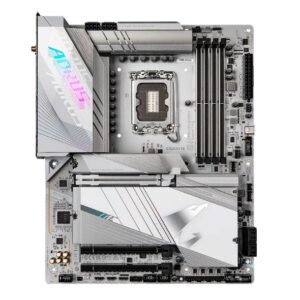

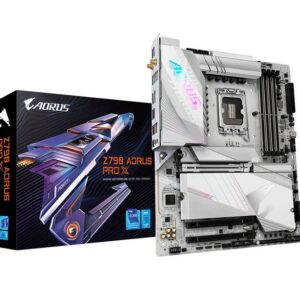

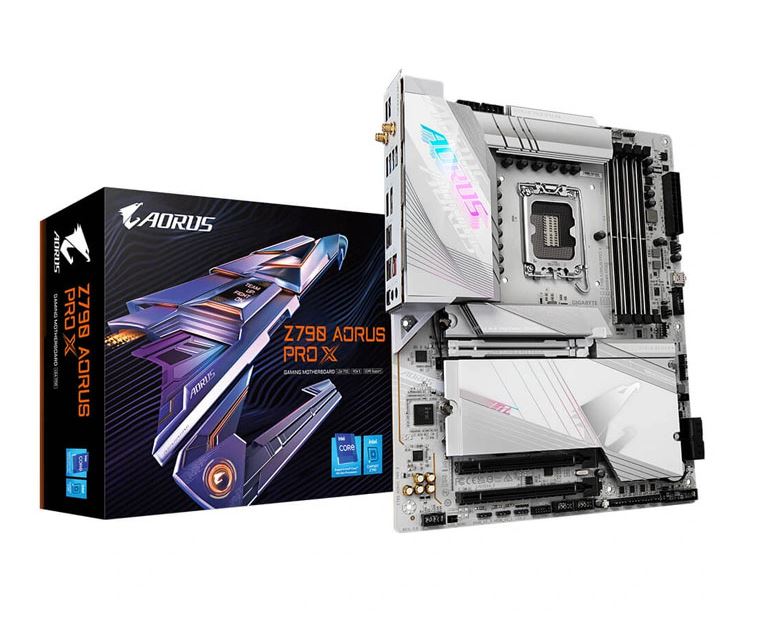

Bo mạch chủ Main Gigabyte Z790 AORUS PRO X Socket LGA1700 – Hàng chính hãng

Thương hiệu: Gigabyte

Dòng sản phẩm: 790 AORUS PRO X

Socket: LGA1700 hỗ trợ CPU Intel thế hệ 12, 13, 14 Pentium® Gold and Celeron® Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)Khe cắm ổ cứng: 5 x M.2 slots, 4 x SATA 6Gb/s

Khe cắm ổ cứng: 5 x M.2 slots, 4 x SATA 6Gb/s.

Key Features:

Supports Intel® Core™ 14th and 13th processors

Digital twin 18+1+2 phases VRM solution

Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support

PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

EZ-Latch Click：M.2 heatsinks with screwless design

EZ-Latch Plus：M.2 slots with quick release design

Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup

UC BIOS：User-Centred intuitive UX with Quick Access function

Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4

Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL

Fast Networking：5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

Extended Connectivity：HDMI, DP IN, Front & Rear USB-C® 20Gb/s

High-Res Audio：ALC1220 & Audiophile Grade Capacitors

Cổng kết nối (Internal):

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

1 x USB Type-C® port (DisplayPort), with USB 2.0 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

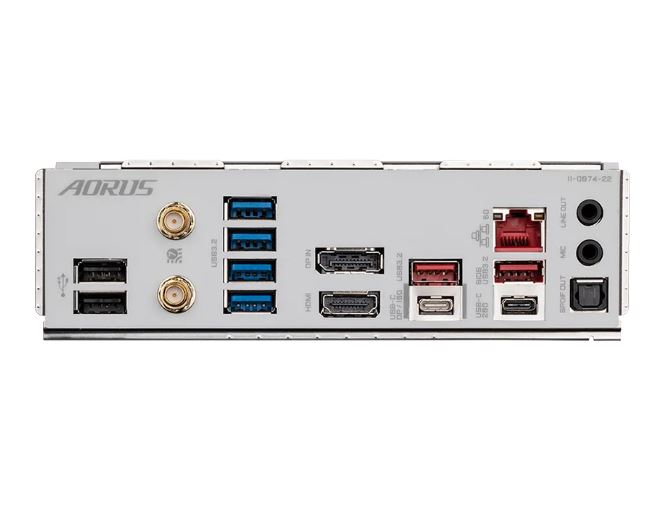

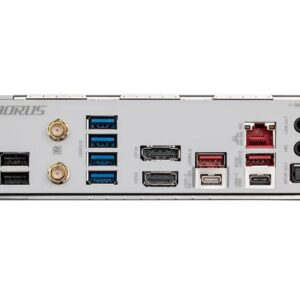

Cổng kết nối (Back Panel):

2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

RAM hỗ trợ:

1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

LAN / Wireless:

Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard Intel® Wi-Fi 7 BE200 (For PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard Qualcomm® Wi-Fi 7 QCNCM865 (For PCB rev. 1.2) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.)

Kích cỡ:  1ATX Form Factor; 30.5cm x 24.4cm
