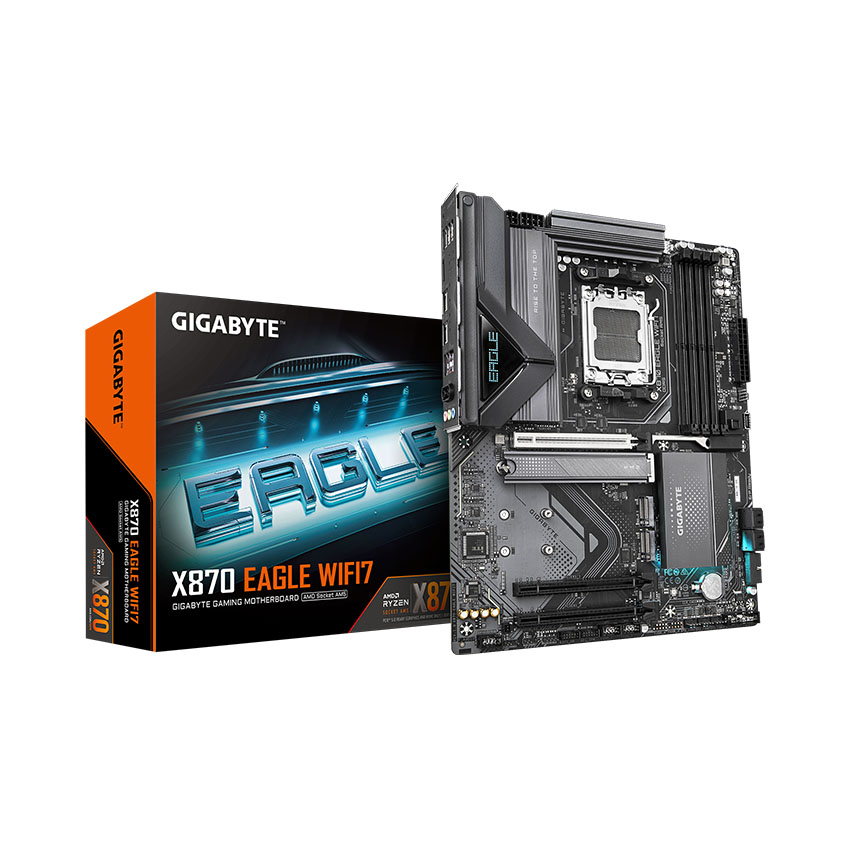

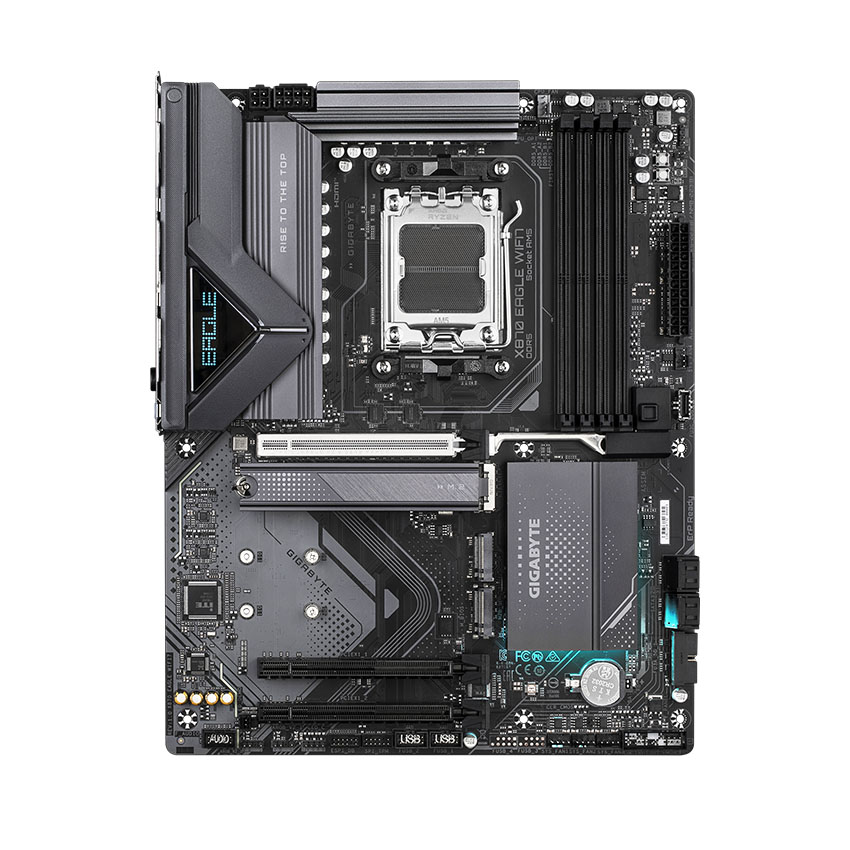

Bo Mạch Chủ Main Gigabyte X870 EAGLE WIFI7 Socket AM5 – Hàng Chính Hãng
Giá niêm yết: 6.990.000₫
| Phân loại | Bo mạch chủ Main |
| Hãng | Gigabyte |
| Chipset | AMD X870 |
| Dòng sản phẩm | X870 EAGLE WIFI7 |
| Socket | AM5 |
Bảo hành: 3 năm
Thông tin chi tiết
| Thương hiệu | Gigabyte |
| Dòng sản phẩm | X870 EAGLE WIFI7 |
| Chipset | AMD X870 |
| Điều khiển I/O | iTE® I/O Controller Chip |
| Khe cắm mở rộng | 1 x PCI Express x16 slot (PCIEX16) integrated in the CPU: AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot.Chipset: – 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |

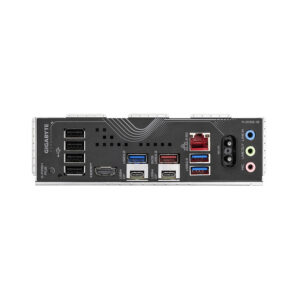

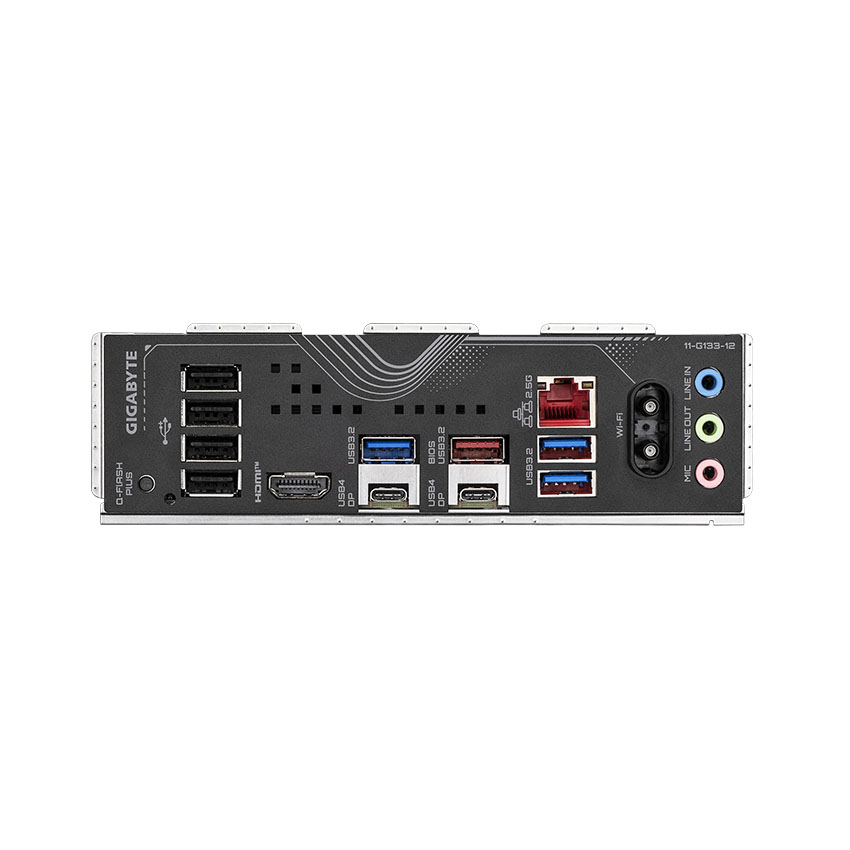

| USB | CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU: – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Key Features: | AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 14+2+2 phases VRM solution Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click：M.2 heatsinks with screwless design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI |
| Bộ nhớ | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types data rate (speed) and number of DRAM modules please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
